NIGHTHAWK PRO 200ARF
Product No:172839-689
Clicks:
Last update:2017.02.17
   Product details

Specifications


Wheelbase(L x W x H)( Not including propeller)

200mm

Package(L x W x H)

260mm x 185mm x 65mm

Nighthawk Pro 200(L x W x H)

207mm x 165mm x 43mm (Not including antenna)

Camera

CCD 600TVL

Propeller

T5050 Tri-Blade Propeller

Flight controller

SP Racing F3 ACRO

Motor

RS2205 2300KV CW THREAD

ESC

Lightning_S 25A (BLHeli_S)

Flight weight (g)

370g  (Not including battery)

Antenna

25-200mw

Battery

3S -4S LiPo Battery (Not including)




Features Highlight

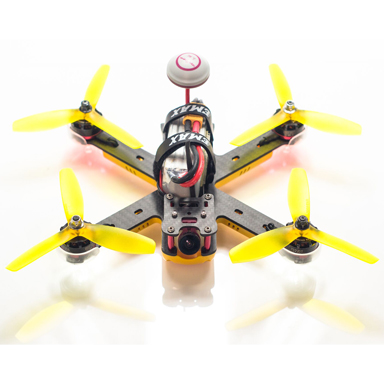

Nighthawk Pro 200 PNP Quadcopter, installed with the latest in drone racing technology, allows new pilots in the hobby to progressively fly like the professionals. The Nighthawk Pro 200 features a great price, amazing value, and technology compared to competitor's products.

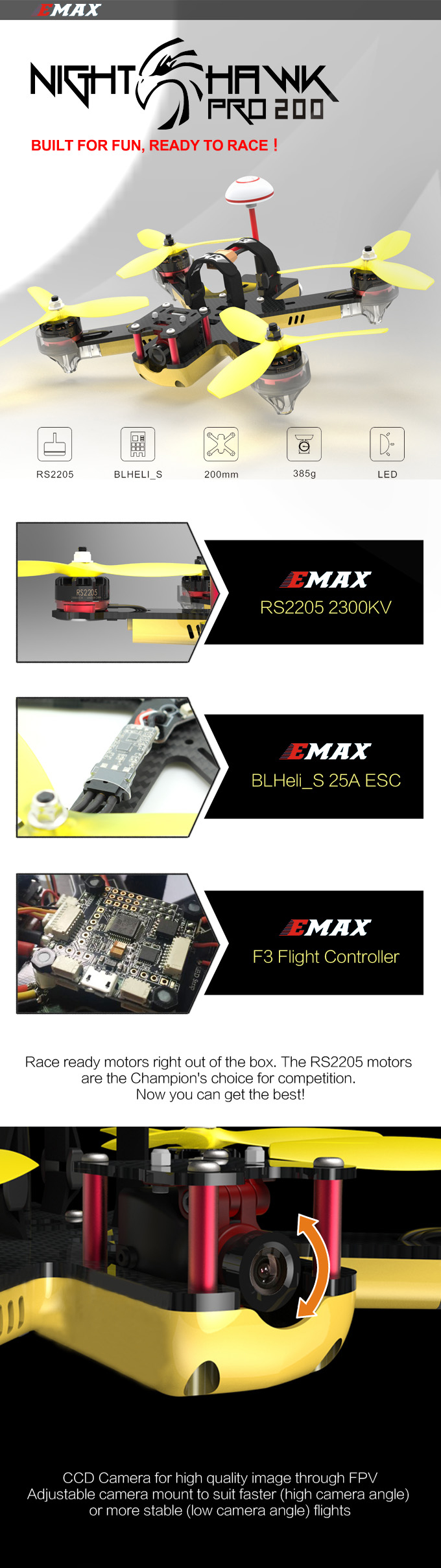

  • Race ready motors right out of the box. The RS2205 motors are the Champion's choice for competition. Now you can get the best!

  • Modular design with the ability to switch out main components without having to solder to small connectors.

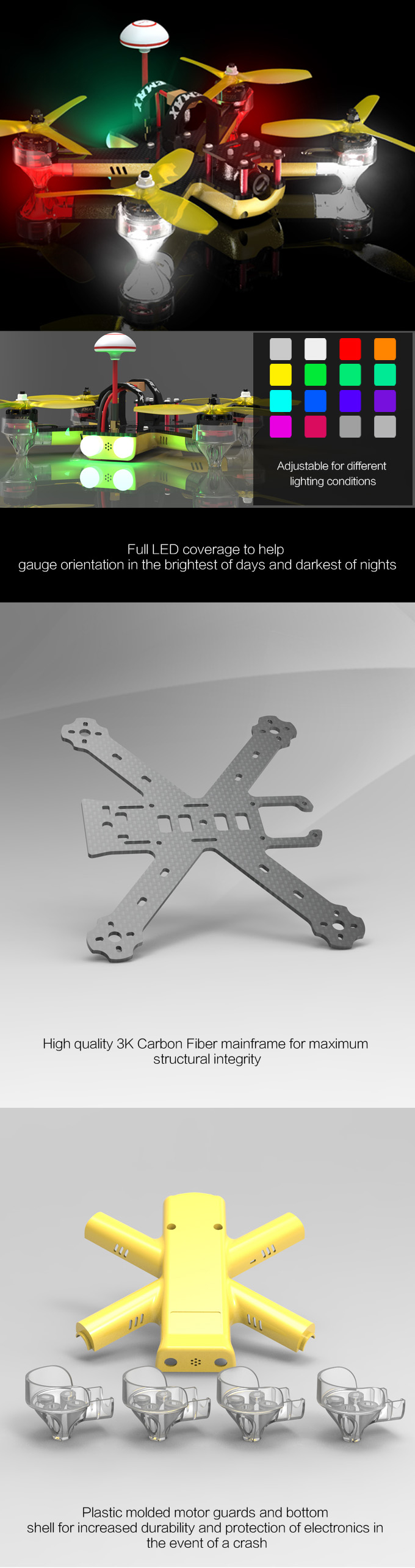

  • Full LED coverage to help gauge orientation in the brightest of days and darkest of nights.

  • Easy access port to switch off motor mount LED’s

  • Plastic molded motor guards and bottom shell for increased durability and protection of electronics in the event of a crash.

  • High quality 3k Carbon fiber mainframe for maximum structural integrity.

  • CCD Camera for high quality image through FPV.

  • Adjustable for different lighting conditions.

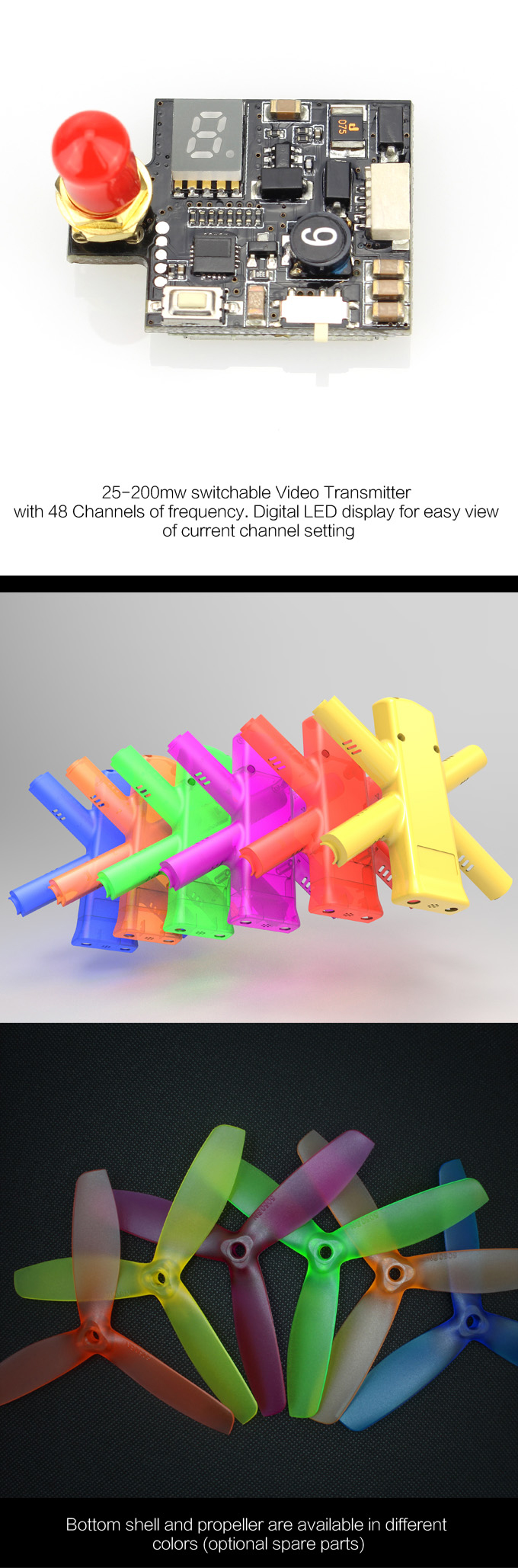

  • 25-200mw switchable Video Transmitter with 48 Channels of frequency.

  • Digital LED display for easy view of current channel setting.

  • Integrated Power Distribution Board (PDB) to supply regulated power for all electronic components.

  • 2mm Socket Button Head Screws are standard.

  • Adjustable camera mount to suit faster (high camera angle) or more stable (low camera angle) flights.

  • Top cover to accommodate an HD camera.



Nighthawk Pro 200 instruction manual:
http://yinyanmodel.com/upload/20170209/20170209094943359.pdf
